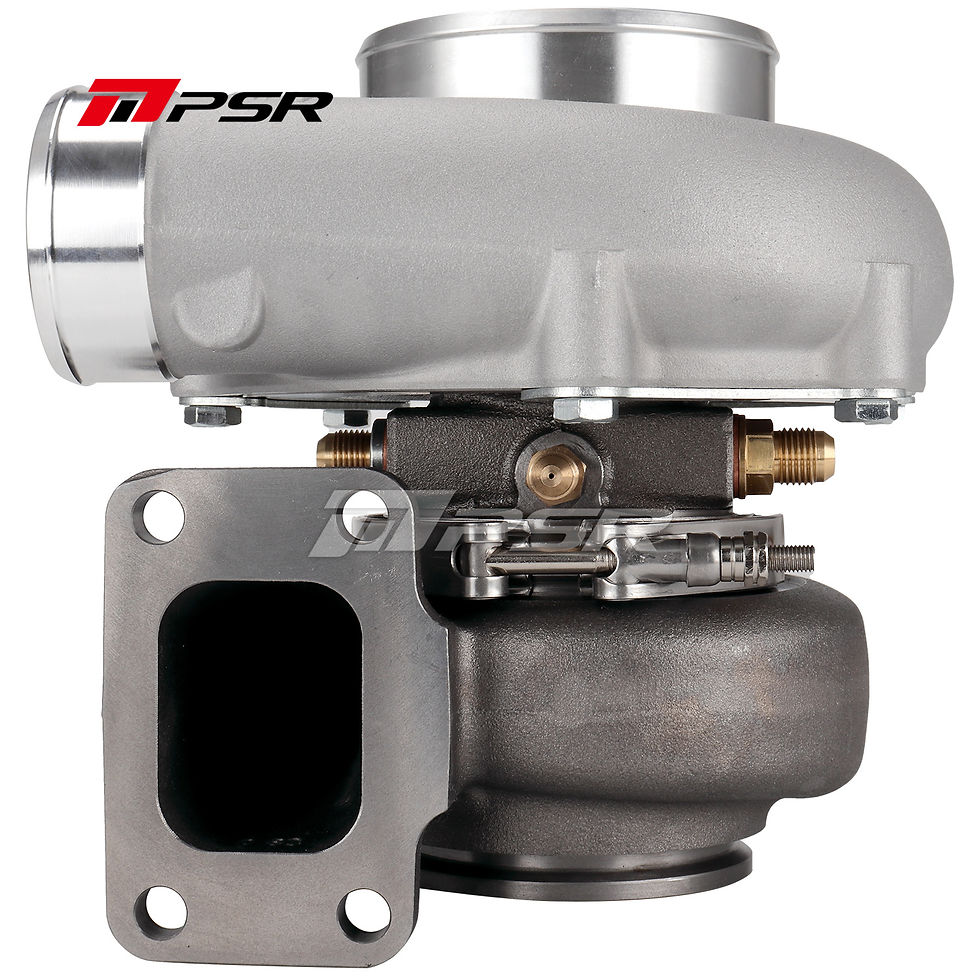

Pulsar PSR6862G

• Please note, T51R housing option requires an extra 7 days handling time

• Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.

• 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology

• 9 Blade G-Aero Inconel 713c Turbine Wheel

• Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port

SPEC

• Compressor Wheel: 68*84mm

• Turbine Wheel: 68*62mm

• Compressor Inlet: 4” Hose

• Compressor Outlet: 2.5” V-Band

• Turbine Inlet: T3/T4/V band

• Turbine Outlet: 3” V-Band

• Water Ports: 2-M14 x 1.5

• Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed

• Oil Drain: Std T3

• 3 options for turbine housing: T3 0.83A/R, T4 0.82A/R, Dual vband 1.01A/R*

• *Please note , T3 1.01 housing will be supplied with an adapter as per the image.

It's strongly recommended to run water cooling to aid reliability (needed for warranty)
